The future is now.

Lightweight Modular Exhaust Systems are here. Schiedel Metaloterm is the leading supplier of prefabricated chimney systems in Europe and has over 70 years of experience in the market. Schiedel provides innovative solutions that are reliable and cost effective. Our future is increasingly gearing towards methods that will reduce fuel consumption which will in turn reduce overhead cost and protect the environment. Schiedel and E4 POWER can provide the solution for your project by providing a lightweight, twin wall insulated exhaust system made of stainless steel and a high pressure sealant. Over the past five years E4 Power has helped introduce their “AD” and “AM” systems to the U.S. Marine industries on various high end projects all over the country. Our team is ready to provide turn-key solutions for your Re-Fit or new build projects.




Schiedel Metaloterm AD

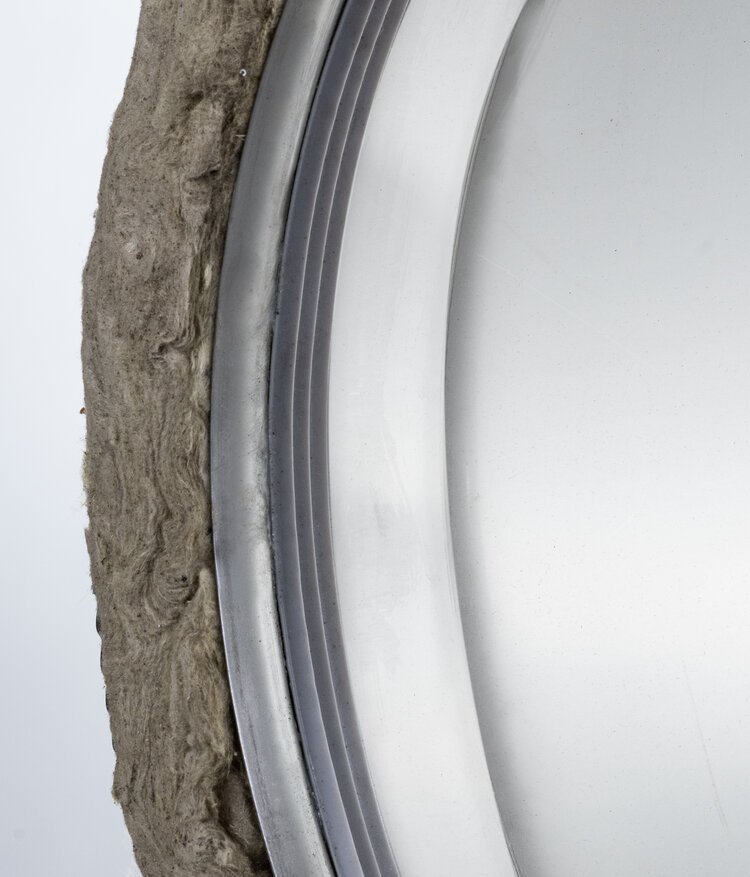

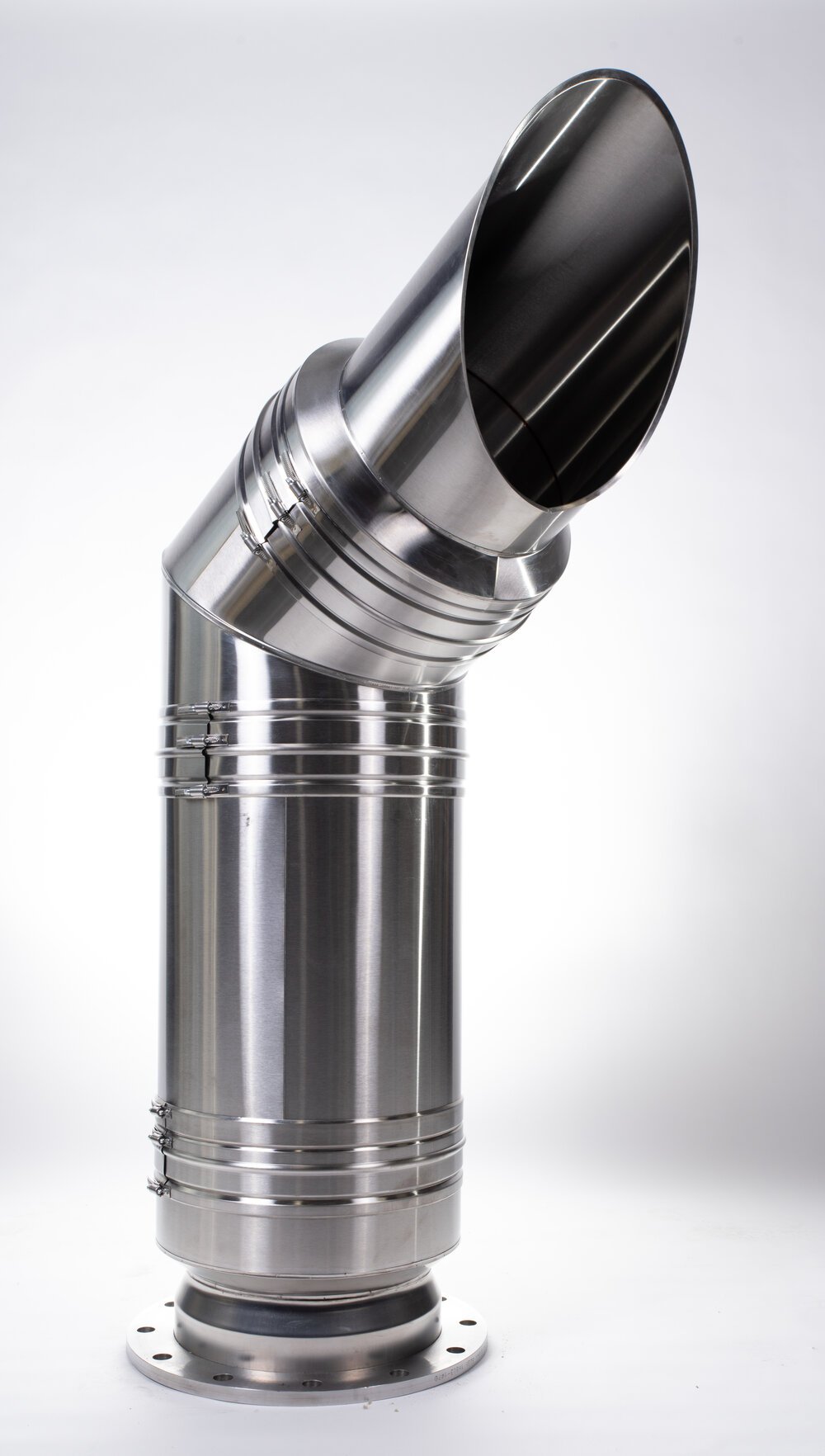

The Schiedel Metaloterm AD system is a modular twin wall insulated exhaust system, made of stainless steel, with a high pressure sealing.

Applications:

Gas/Diesel engines

(Emergency)power gensets

Uninterrupted Power Supply (UPS)

Industrial processes

Advantages:

Inner and outer wall from high quality stainless steel

No thermal bridges; better heat protection

Stress free thermal expansion

High quality insulation uninterrupted from base plate to top stub

Technical characteristics:

Fuel: Diesel, gas, oil, process waste

Firing Temp: 600ºC

Mode of operation: High Positive Pressure (H1)

Pressure Capabilities: 500Pa

Diameter Range: 130-700mm

Schiedel Metaloterm AM

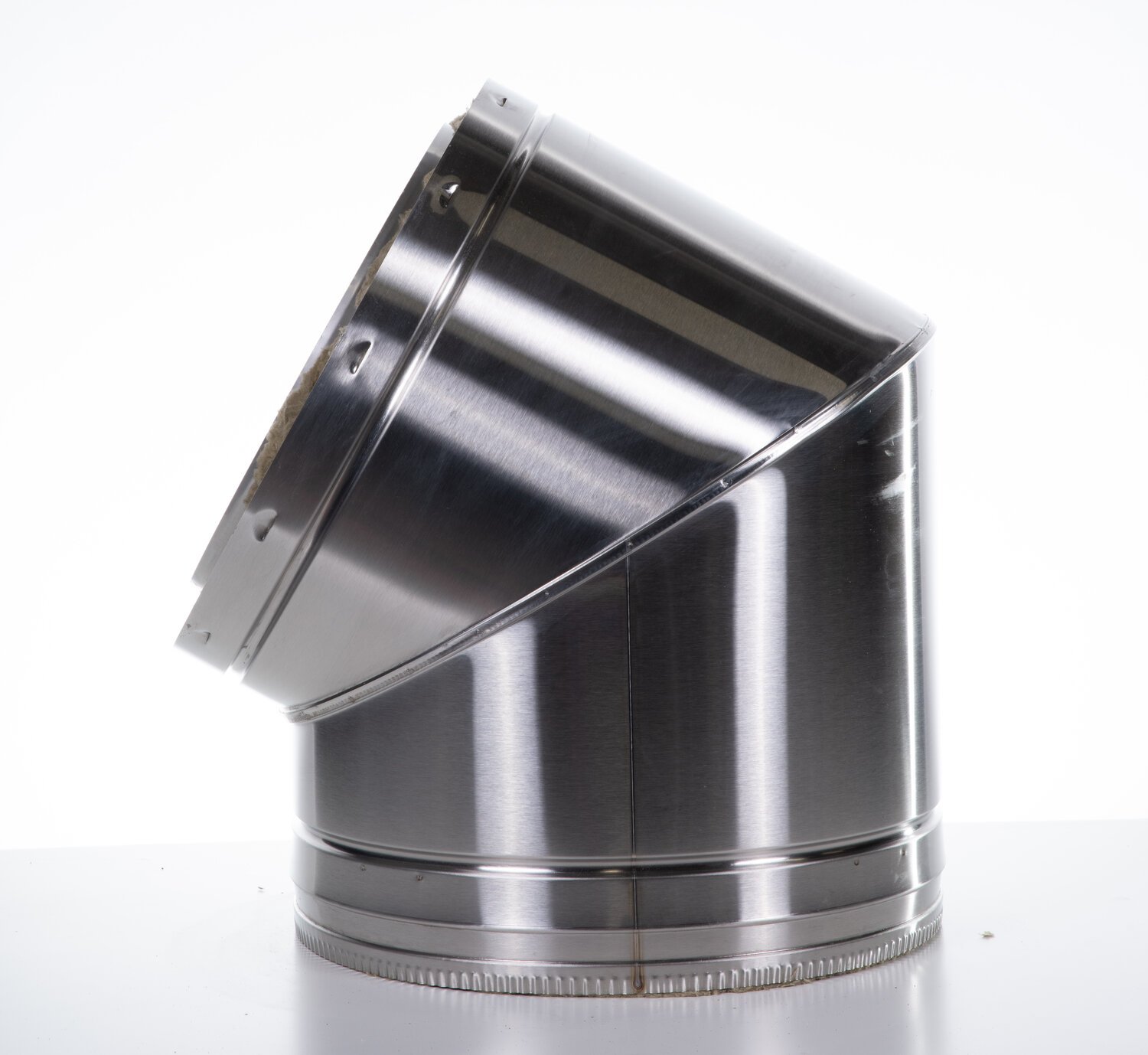

The Schiedel Mataloterm AM system is a modular twin wall insulated exhaust system, made of extreme high quality stainless steel, with high pressure sealing.

Applications:

Auxiliary and propulsion engines

(Emergency) power gensets

Incinerators

Boilers

Advantages:

Outer wall made from 254 SMO

No thermal bridges; better heat protection

Stress free thermal expansion

High quality insulation uninterrupted from base plate to top stub

Technical Characteristics:

Fuel: Diesel, gas, oil, process wastes

Firing Temp: 600ºC

Mode of Operation: High Positive Pressure (H1)

Pressure Capabities: 5000Pa

Diameter Range: 80-600mm



E4 POWER Brings Service and Support to the US Market.




Survey, 3D Drafting, Pricing

Upon request an E4 Power team member will take a survey of the vessel to gather technical measurements and information. Once those measurements are received, our in house engineer is able to create a 3D-Draft of the vessel and where the exhaust pipes will be placed within the vessel. Such planning will eliminate any road-blocks and save the customer time and money. Once the design of the modular exhaust pipes has been agreed upon the customer will be given a final quote.



Turn- Key Installation

It does not matter where your vessel may be our qualified team is ready. Turn-Key installations are a major part of what we do and we take pride in our work to make sure our customers are satisfied. In the event that the customer does not require our assistance in the installation process, the option of components alone is available as well.



Re-Fit

Replacing existing exhaust systems due to fatigue or engine re-power with the modular exhaust system is a time and cost saving option! With the bonus feature of having an aesthetic appearance as well.






Schiedel Metaloterm are Lloyds Register Approved for Marine & Offshore applications such as cruise ships, yachts, as well as tankers and offshore platforms. Schiedel Metaloterm also specialise in flue systems for coastal buildings, where corrosion and environmental impact is increased.
